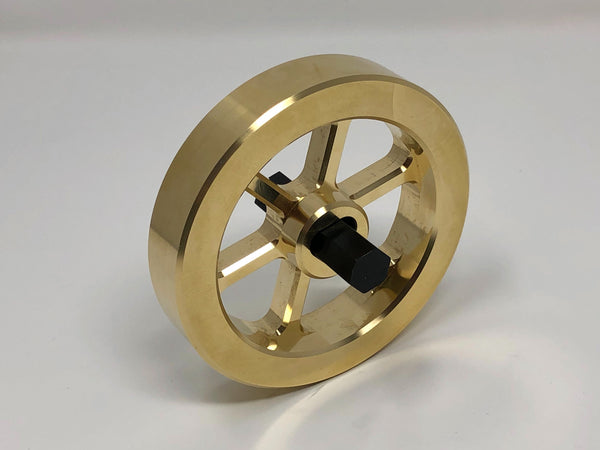

This premium flywheel is machined from 360 Brass. The 1/2 inch triangular bore is a precision fit on 1/2 inch hex shaft. These are the same flywheels that FRC team 2910 used on shooter of their 2020, 2021, and 2022 robots. The flywheels have been tested up to 9,000 RPM.
- Material: 360 Brass
- Diameter: 3.95 Inches
- Thickness: 0.75 Inches
- Weight: 1.54 Pounds
- Moment Of Inertia: 4.0 Pounds * Square Inches
CAD:
